Capacity expansion / unit commitment and economic dispatch under climate change¶
Introduction¶

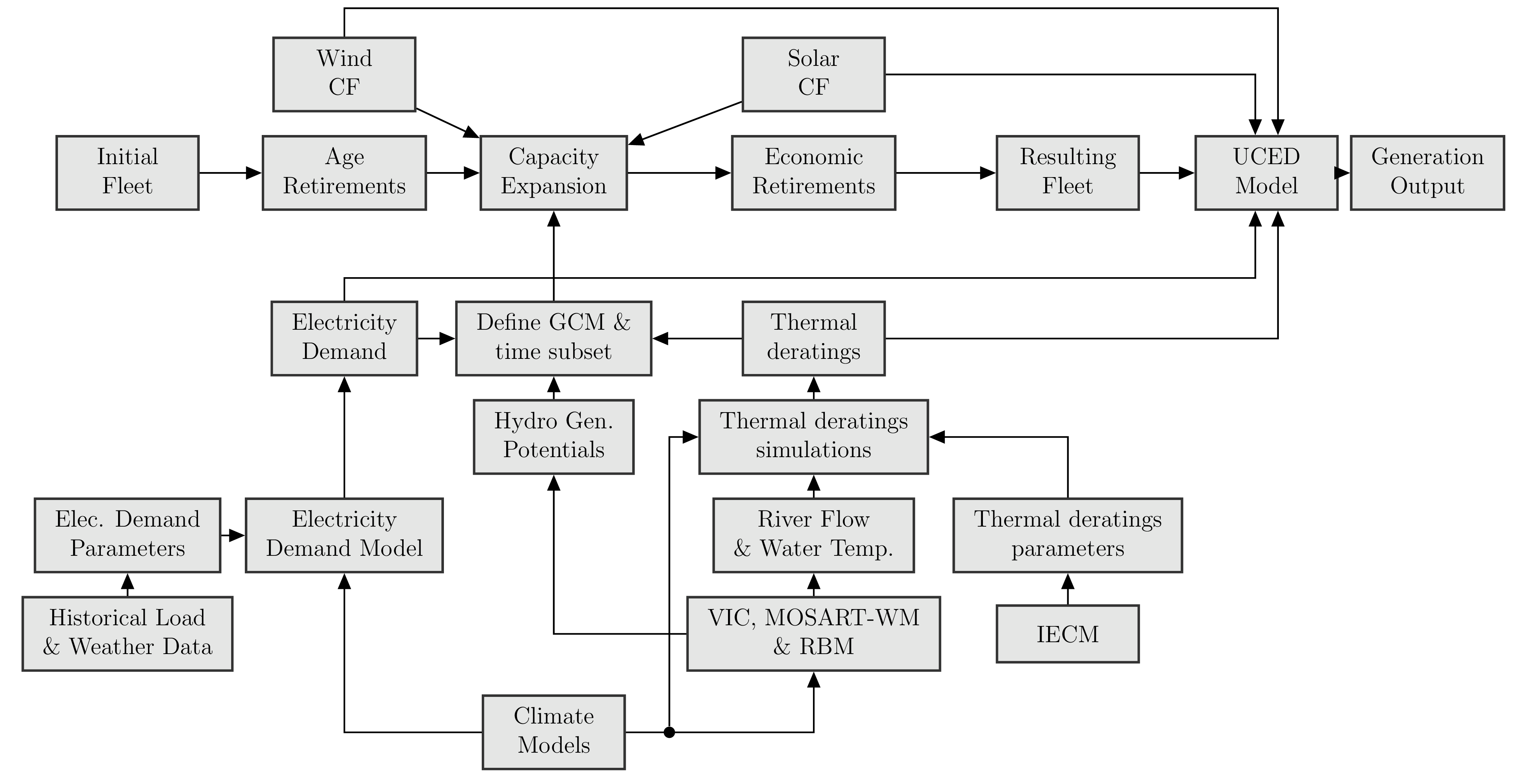

The capacity expansion / unit commitment and economic dispatch under climate change model uses an integrated, multi-model framework to examine how climate-related risks in the power sector could affect power system’s planning and operation decisions. The figure below illustrates our modeling framework.
Modeling framework¶
We used data sets with projections of high-resolution (1/8th degree, ~12 km) daily surface meteorological variables from twenty different Global Circulation Models (GCM) from the Coupled Model Intercomparison Project 5 [7], spatially downscaled using the Multivariate Adaptive Constructed Analogs (MACA) method [1]. These projections of climate forcings were used by an econometric model to simulate future regional hourly electricity demand under climate change scenarios [14]. Also, the data from the GCMs was used to simulate daily river flows and water temperatures in our study region [2]. To simulate these daily river flows and water temperatures, we combined a macro-scale hydrological model, the Variable Infiltration Capacity model (VIC) [5]; a coupled routing and water management model, the Model for Scale Adaptive River Transport Large-Scale Water Management Model (MOSART-WM) [4][8][9]; and a stream temperature model, the River Basin Model (RBM) [10]. Next, the generated river flows and water temperatures were used to estimate hydropower potential from existing hydro generators. To simulate how thermoelectric generators are affected by climate change, we used the Integrated Environmental Control Model (IECM) [12][11]. The IECM outputs plant performance characteristics and costs for different combinations of power plant technologies and cooling systems. We used this model to estimate typical operating response curves of thermal generators to changes in climate and hydrological conditions [6]. Then, we used these operating response curves with the projections of climate forcings and hydrological variables to simulate operating conditions of thermoelectric power plants under climate change. Additionally, we used the data set of simulated wind and solar generation profiles from the U.S. National Renewable Energy Laboratory (NREL) [15][3] to define upper bounds on wind and solar power plants hourly generation in our model. We combined all these simulated data sets into a capacity expansion model to simulate future generator additions [13]. Also, we integrated the resulting generator fleets in a unit commitment and economic dispatch model to simulate these fleet configurations under consistent climate change conditions.
To run a CE, UCED, or combined CE/UCED simulation the function masterFunction() (see Main Scripts) must be called within a python script.
This python script must also load the parameters needed to execute the simulation and pass them as arguments to masterFunction().
A GAMS license is necessary to run this model.
See Example for a minimal example of how to run the model.
Acknowledgments¶
Funding for this work came from the National Science Foundation (NSF) as part of the Resilient Interdependent Infrastructure Processes and Systems (RIPS) program via Grant Number EFRI-1441131.
References¶
- 1
John T Abatzoglou and Timothy J Brown. A comparison of statistical downscaling methods suited for wildfire applications. International Journal of Climatology, 32(5):772–780, April 2012.
- 2
Yifan Cheng, Nathalie Voisin, John Yearsley, and Bart Nijssen. Thermal extremes in regulated river systems under climate change: an application to the southeastern U.S. rivers. Environmental Research Letters, 2020. URL: https://iopscience.iop.org/article/10.1088/1748-9326/ab8f5f, doi:10.1088/1748-9326/ab8f5f.
- 3
Caroline Draxl, Andrew Clifton, Bri-Mathias Hodge, and Jim McCaa. The Wind Integration National Dataset (WIND) Toolkit. Applied Energy, 151:355–366, aug 2015. URL: https://www.sciencedirect.com/science/article/pii/S0306261915004237?via{\%}3Dihub, doi:10.1016/J.APENERGY.2015.03.121.
- 4
Hongyi Li, Mark S. Wigmosta, Huan Wu, Maoyi Huang, Yinghai Ke, André M. Coleman, and L. Ruby Leung. A Physically Based Runoff Routing Model for Land Surface and Earth System Models. Journal of Hydrometeorology, 14(3):808–828, jun 2013. URL: http://journals.ametsoc.org/doi/abs/10.1175/JHM-D-12-015.1, doi:10.1175/jhm-d-12-015.1.
- 5
Xu Liang, Dennis P. Lettenmaier, Eric F. Wood, and Stephen J. Burges. A simple hydrologically based model of land surface water and energy fluxes for general circulation models. Journal of Geophysical Research, 99(D7):14415, jul 1994. URL: http://doi.wiley.com/10.1029/94JD00483, doi:10.1029/94jd00483.
- 6
Aviva Loew, Paulina Jaramillo, Haibo Zhai, Rahim Ali, Bart Nijssen, Yifan Cheng, and Kelly Klima. Fossil fuel-fired power plant operations under a changing climate. Climatic Change, 163(1):619–632, sep 2020. URL: http://link.springer.com/10.1007/s10584-020-02834-y, doi:10.1007/s10584-020-02834-y.
- 7
Karl E Taylor, Ronald J Stouffer, Karl E Taylor, and Gerald A Meehl. An Overview of CMIP5 and the Experiment Design. dx.doi.org, 93(4):485–498, April 2012.
- 8
N Voisin, H Li, D Ward, M Huang, M Wigmosta, and L R Leung. On an improved sub-regional water resources management representation for integration into earth system models. Hydrol. Earth Syst. Sci, 17:3605–3622, 2013. URL: www.hydrol-earth-syst-sci.net/17/3605/2013/, doi:10.5194/hess-17-3605-2013.
- 9
Nathalie Voisin, Mohamad I. Hejazi, L. Ruby Leung, Lu Liu, Maoyi Huang, Hong-Yi Li, and Teklu Tesfa. Effects of spatially distributed sectoral water management on the redistribution of water resources in an integrated water model. Water Resources Research, 53(5):4253–4270, may 2017. URL: http://doi.wiley.com/10.1002/2016WR019767, doi:10.1002/2016WR019767.
- 10
John R. Yearsley. A semi-Lagrangian water temperature model for advection-dominated river systems. Water Resources Research, dec 2009. URL: http://doi.wiley.com/10.1029/2008WR007629, doi:10.1029/2008WR007629.
- 11
Haibo Zhai, Edward S. Rubin, and Peter L. Versteeg. Water use at pulverized coal power plants with postcombustion carbon capture and storage. Environmental Science and Technology, 45(6):2479–2485, 2011. URL: http://pubs.acs.org/doi/abs/10.1021/es1034443, doi:10.1021/es1034443.
- 12
Carnegie Mellon University. Integrated Environmental Control Model (IECM) Version 11.2. URL: http://cmu.edu/epp/iecm/index.html.
- 13
Francisco Ralston Fonseca, Michael Craig, Paulina Jaramillo, Mario Bergés, Edson Severnini, Aviva Loew, Haibo Zhai, Yifan Cheng, Bart Nijssen, Nathalie Voisin, and John Yearsley. Capacity expansion of an electricity generation fleet under climate change. 2020. Manuscript submitted for publication.
- 14
Francisco Ralston Fonseca, Paulina Jaramillo, Mario Bergés, and Edson Severnini. Seasonal effects of climate change on intra-day electricity demand patterns. Climatic Change, 33(1):1–17, 2019. URL: https://doi.org/10.1007/s10584-019-02413-w, doi:10.1007/s10584-019-02413-w.
- 15
US National Renewable Energy Laboratory. Solar Power Data for Integration Studies. 2010. URL: https://www.nrel.gov/grid/solar-power-data.html.
